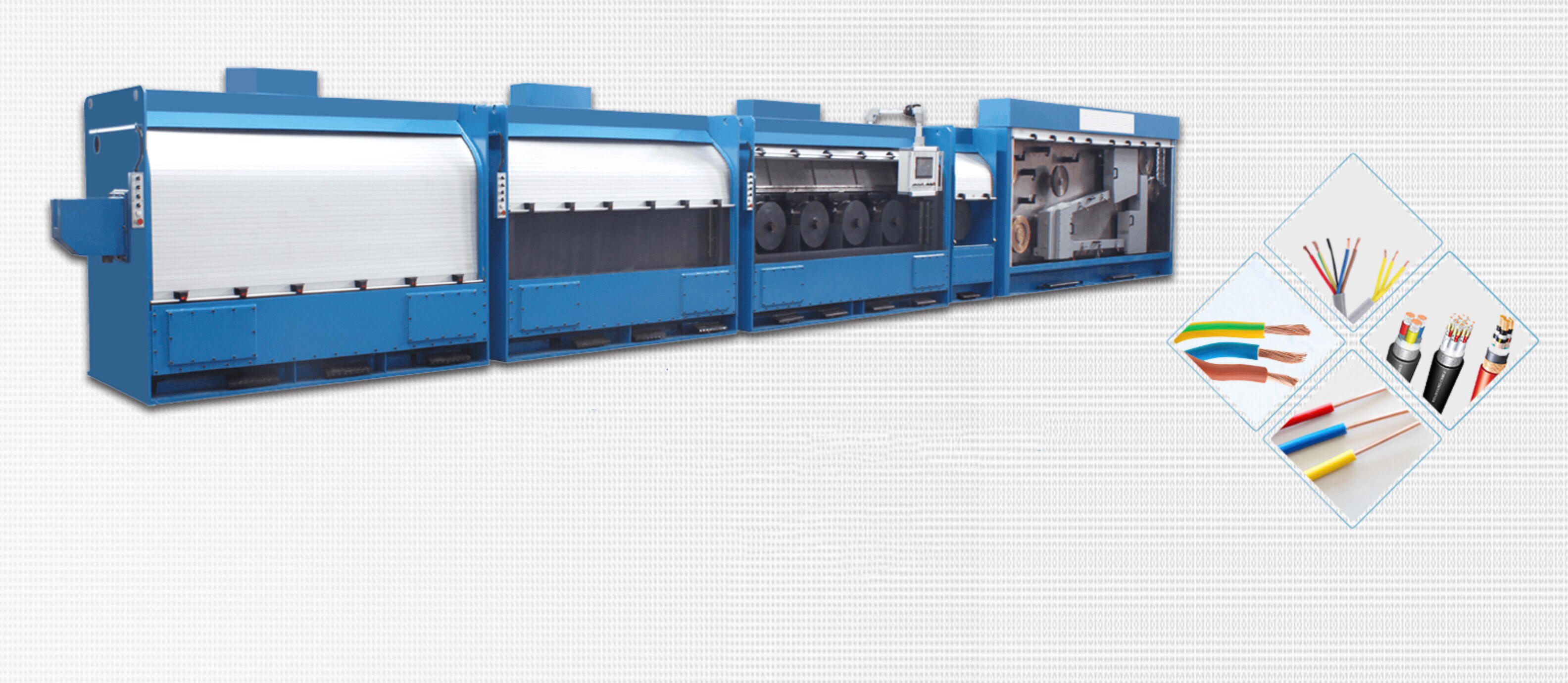

Double Line 2 Wire Rod Breakdown Machine For Drawing Copper Or Aluminum Rod

Product Categories

NEWLEAD WIRE AND CABLE MAKING EQUIPMENTS GROUP CO.,LTD

Contact Now

Name: Double Line 2 Wire Rod Breakdown Machine For Drawing Copper Or Aluminum Rod
Brand: Newlead
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Newlead

Model Number : 13DT/2

Price : Negotiation

MOQ : 1 Unit/Units

Certification : ISO CE

Supply Ability : 1 set 180 days

Delivery Time : 200 days

Packaging Details : wooden pallet

Usage : Drawing

Capstan : 450

Speed : 1800MPM

Drawing drafts : Max 13

Motor : 510KW or individual drives 37kw

Wires : 2 lines

Contact Now

Double line 2 wire Rod Breakdown machine for drawing copper, aluminum or aluminum alloy rod

Design:

optimized wire cooling/lubrication fully submerged drawing basin
extremely smooth operation and uniform load transmission by helical precision gear
vibration-damping grey cast iron housing for long service life
highly reliable separation of drawing emulsion and gear oil via mechanical seal (long service intervals)
user-friendly design
Increase in productivity:

• reduced downtime when changing the machine setup for different dimensions via multi-motor drive technology (quick drawing die change system)

• NMI ( Machine Interface) color touchscreen for data entry, display of production parameters and maintenance instructions

Energy and cost efficiency:

• • •

•

production of wires with differentfinished diameters

reduced consumption of electric energy per ton of produced wire

long service intervals and extended drawing tool service life minimize the requirement to stock and use spare parts

reduced consumption of oil and drawing lubricant

Design:

AC-continuous resistance annealerin single or two wire version
3-zone annealing system, electricallyneutral (no current flow to other machines)
driven by the drawing machine orby separate drives
single wire path with no crossover
freely accessible slip rings and carbonbrushes

Energy and cost efficiency:

• reduced consumption of energy

• ergonomic and user-friendly machine design, with easy maintenance

• enclosed wire path for reducedconsumption of protective gas

Machine type		450/13-2	450/11-2	459/9-2
Drawing capstan dia. (mm)		Φ450	Φ450	Φ450
Max. Die No.		13	11	9
Inlet dia. (mm)	Copper	Φ8
	Al, Al alloy	Φ9.5
Outlet dia. (mm)	Copper	Φ1.2-Φ4.2	Φ1.5-Φ4.2	Φ2.0-Φ4.2
	Al, Al alloy	Φ1.7-Φ5.0	Φ2.2-Φ5.0	Φ2.8-Φ5.0
Max. drawing speed (m/s)		30	25	20
Single motor power (KW)		37/55 (AC)(
Capstan arrangement		Horizontal type
Lubrication type		Full immersion
Take-up type (optional)		Double take-up/single take-up/orbital coiler
Optional equipment		On-line horizontal annealer

On-line continuous annealing device
Machine type	450	450
Annealing wire dia. (mm)	Φ1.2-3.5	Φ1.2-4.2
Annealing voltage (V)	0-60	0-60
Annealing current (A)	0-6000A (DC)	0-8000A (AC)
Max. annealing speed (m/s)	25 m/s
